Trench MOS

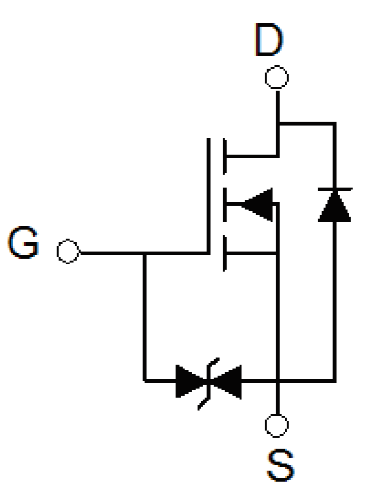

Part Number	Download	Circuit	Status	Type	Process	ESD Yes/No	VDS V	VGS V	ID A	VGS(TH) V	RDS(mΩ)@VGS 10V Typ	RDS(mΩ)@VGS 10V Max	RDS(mΩ)@VGS 4.5V Typ	RDS(mΩ)@VGS 4.5V Max	Package
Reset Reset All			Active OK Reset	Dual-N Dual-P N/P-ch Single-N Single-P OK Reset	Trench OK Reset	No Yes OK Reset	OK Reset	±10 ±12 ±16 ±20 ±25 ±30 ±6 ±7 ±8 OK Reset	OK Reset	-0.35~-1.1 -0.3~-1 -0.45~-1.2 -0.4~-0.9 -0.4~-1 -0.4~-1.0 -0.4~-1.3 -0.5~-0.9 -0.5~-1 -0.5~-1.2 -0.5~-1.5 -0.6~-1.4 -0.6~-1.5 -0.7 -0.7~-1.3 -0.9~-2 -1.0~-2.5 -1.0~-3.0 -1.1~-2.2 -1.2~-2.2 -1.5 -1.5~-2.5 -1.5~-3.5 -1~-2 -1~-2.5 -1~-3 -1～-2.5 -1～-3 -2~-4 0.35~1.1 0.35~1.4 0.35~2.5 0.3~1.1 0.45~1 0.45~1.1 0.45~1.2 0.4~1 0.4~1.0 0.4~1.1 0.4~1.2 0.4~1.4 0.5~0.9 0.5~1 0.5~1.1 0.5~1.2 0.5~1.3 0.5~1.5 0.5~2 0.5～2 0.65~1.2 0.65~1.20 0.6~1 0.6~1.2 0.6~1.4 0.6~1.5 0.7~1.4 0.7~1.5 0.7~3 0.8~1.5 0.8~3 0.9~1.5 1 1.0~2.5 1.2~2.5 1.2~2.8 1.2～3 1.3~2.3 1.3~2.5 1.5 1.5~2.5 1~2 1~2.5 1~2.8 1~3 1～2.2 1～2.5 1～3 2~4 OK Reset	OK Reset	OK Reset	OK Reset	OK Reset	CSPB1111-4 CSPB1313-4 CSPB1515-4 CSPB1717-4 CSPB1912-6 CSPB2213-6 CSPB2217-6 CSPC2019-10 CSPC2115-10 CSPC2623-10 CSPC2624-10 CSPC3015-10 CSPC3028-14 CSPC3030-14 CSPC3220-10 CSPC3421-10 DFN1006-3L DFN1006-3L-A DFNWB2x2-6L DFNWB2x3-6L DFNWB3x3-8L DFNWB5x2-6L PDFNWB3.3x3.3-8L PDFNWB3.3x3.3-8L-B PDFNWB5x6-8L PDFNWB5x6-8L-A SOP8 SOT-223 SOT-23 SOT-23-3L SOT-23-6L SOT-323 SOT-363 SOT-523 SOT-563 SOT-723 SOT-89-3L TO-220-3L-C TO-252-2L TO-92 TSSOP8 WBFBP-03E OK Reset

CJAB25N03			Active	Single-N	Trench	No	30	±20	25	1～3	6	10	9	14	PDFNWB3.3x3.3-8L
CJAB35N03			Active	Single-N	Trench	No	30	±20	35	1～3	5.5	7	8.5	12	PDFNWB3.3x3.3-8L
CJAB25N04			Active	Single-N	Trench	No	40	±20	25	1～2.5	7.2	9.5	10	16	PDFNWB3.3x3.3-8L
CJAB55N03			Active	Single-N	Trench	No	30	±20	55	1～2.5	3.6	5.5	5.9	9.5	PDFNWB3.3x3.3-8L
CJAB60N03			Active	Single-N	Trench	No	30	±20	60	1～2.5	2.9	4.2	4.2	7.3	PDFNWB3.3x3.3-8L
CJW1012			Active	Single-N	Trench	Yes	20	±12	0.5	0.45~1.2	-	-	250	700	SOT-323
CJAA3134K			Active	Single-N	Trench	Yes	20	±12	0.75	0.35~1.1	-	-	-	380	WBFBP-03E
CJBA3134K			Active	Single-N	Trench	Yes	20	±12	0.75	0.35~1.1	-	-	250	500	DFN1006-3L
CJBA3144K			Active	Single-N	Trench	Yes	30	±12	0.6	0.5~1.5	-	-	290	500	DFN1006-3L
CJBA7002K			Active	Single-N	Trench	Yes	60	±20	0.41	1.3~2.3	1200	1500	1300	1800	DFN1006-3L
CJBA3541K			Active	Single-N	Trench	Yes	30	±12	0.6	0.8~1.5	-	-	320	500	DFN1006-3L
CJQ07N10			Active	Single-N	Trench	No	100	±20	7	1.2～3	25	28	28	38	SOP8
CJQ08N03			Active	Single-N	Trench	No	30	±12	8	0.5~1.5	13	18	16	25	SOP8
CJQ4410			Active	Single-N	Trench	No	30	±20	7.5	1~3	5.6	13.5	8.5	20	SOP8
CJQ20N03			Active	Single-N	Trench	No	30	±20	20	1~2.5	4.2	4.8	5.4	7.1	SOP8
CJAC10H02			Active	Single-N	Trench	No	20	±12	100	0.5~1.2	-	-	1.5	2	PDFNWB5x6-8L
CJMN2012			Active	Single-N	Trench	No	20	±10	12	0.35~2.5	-	-	10	15	DFNWB2x2-6L
CJM3005			Active	Single-N	Trench	Yes	30	±10	5	0.6~1	32	42	35	44	DFNWB2x2-6L
CJAC40N04			Active	Single-N	Trench	No	40	±20	40	1~2.5	7.2	9.5	10	16	PDFNWB5x6-8L
CJAC80N03			Active	Single-N	Trench	No	30	±20	80	1～2.5	3	4	4.3	7.3	PDFNWB5x6-8L

«
