Trench MOS

Part Number	Download	Circuit	Status	Type	Process	ESD Yes/No	VDS V	VGS V	ID A	VGS(TH) V	RDS(mΩ)@VGS 10V Typ	RDS(mΩ)@VGS 10V Max	RDS(mΩ)@VGS 4.5V Typ	RDS(mΩ)@VGS 4.5V Max	Package
Reset Reset All			Active OK Reset	Dual N Dual-N Dual-P N/P-ch Single-N Single-P OK Reset	Trench OK Reset	No Yes OK Reset	OK Reset	±10 ±12 ±16 ±20 ±25 ±30 ±6 ±7 ±8 OK Reset	OK Reset	-0.35~-1.1 -0.3~-1 -0.45~-1.2 -0.4~-0.9 -0.4~-1 -0.4~-1.0 -0.4~-1.3 -0.5~-0.9 -0.5~-1 -0.5~-1.2 -0.5~-1.5 -0.6~-1.4 -0.6~-1.5 -0.7 -0.7~-1.3 -0.9~-2 -1.0~-2.5 -1.0~-3.0 -1.1~-2.2 -1.2~-2.2 -1.5 -1.5~-2.5 -1.5~-3.5 -1~-2 -1~-2.5 -1~-3 -1～-2.5 -1～-3 -2~-4 0.35~1.1 0.35~1.4 0.35~2.5 0.3~1.1 0.45~1 0.45~1.1 0.45~1.2 0.4~1 0.4~1.0 0.4~1.1 0.4~1.2 0.4~1.4 0.5~0.9 0.5~1 0.5~1.1 0.5~1.2 0.5~1.3 0.5~1.5 0.5~2 0.5～2 0.65~1.2 0.65~1.20 0.6~1 0.6~1.2 0.6~1.4 0.6~1.5 0.7~1.4 0.7~1.5 0.7~3 0.8~1.5 0.8~3 0.9~1.5 1 1.0~2.5 1.2~2.5 1.2~2.8 1.2～3 1.3~2.3 1.3~2.5 1.5 1.5~2.5 1~2 1~2.5 1~2.8 1~3 1～2.2 1～2.5 1～3 2~4 OK Reset	OK Reset	OK Reset	OK Reset	OK Reset	CSPB1111-4 CSPB1313-4 CSPB1515-4 CSPB1717-4 CSPB1912-6 CSPB2213-6 CSPB2217-6 CSPC2019-10 CSPC2115-10 CSPC2623-10 CSPC2624-10 CSPC3015-10 CSPC3028-14 CSPC3030-14 CSPC3220-10 CSPC3421-10 DFN1006-3L DFN1006-3L-A DFNWB2x2-6L DFNWB2x3-6L DFNWB3x3-8L DFNWB5x2-6L PDFNWB3.3x3.3-8L PDFNWB3.3x3.3-8L-B PDFNWB5x6-8L PDFNWB5x6-8L-A SOP8 SOT-223 SOT-23 SOT-23-3L SOT-23-6L SOT-323 SOT-363 SOT-523 SOT-563 SOT-723 SOT-89-3L TO-220-3L-C TO-252-2L TO-92 TSSOP8 WBFBP-03E OK Reset

CJ4616SP			Active	Dual-N	Trench	Yes	15	±12	8	0.5~1.3	-	-	14	18	CSPB1515-4
UM6K1N			Active	Dual-N	Trench	Yes	30	±20	0.1	0.8~1.5	-	-	4000	8000	SOT-363

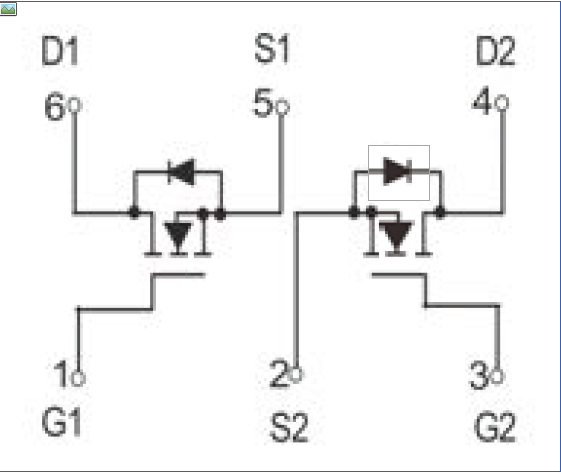

CJL2322			Active	Dual-N	Trench	No	20	±12	4	0.4~1	-	-	22	30	SOT-23-6L
CJL2311			Active	N/P-ch	Trench Trench	No No	20 -20	±12 ±8	4 -2.3	0.4~1 -0.4~-1	- -	- -	22 75	30 90	SOT-23-6L
CJL2013			Active	Dual-N	Trench	No	20	±10	6	0.5~1	-	-	12.2	14	SOT-23-6L
CJAC0610			Active	N/P-ch	Trench Trench	Yes Yes	100 -100	±20 ±20	10 -6.0	1~2.5 -1~-2.5	85 150	100 210	110 160	160 220	PDFNWB5x6-8L-A
CJND2004			Active	Dual-N	Trench	Yes	20	±12	10	0.4~1	-	-	8	10.5	DFNWB5x2-6L
CJ6207SP			Active	Dual-N	Trench	Yes	12	±8	8.5	0.4~1.4	-	-	4	6.4	CSPB2213-6
CJ8218SP			Active	Dual-N	Trench	Yes	12	±8	13.5	0.35~1.4	-	-	2.2	2.9	CSPC2019-10
CJ8208SP-A			Active	Dual-N	Trench	Yes	12	±8	14	0.35~1.4	-	-	2.1	2.8	CSPC3015-10
CJAB2003			Active	N/P-ch	Trench Trench	No No	30 -30	±20 ±20	30 -20	1~2.5 -1~-2.5	10 26	13 34	17 40	22 52	PDFNWB3.3x3.3-8L-B
CJQ6601			Active	N/P-ch	Trench Trench	No No	30 -30	±12 ±12	5.8 -4.2	0.7~1.4 -0.7~-1.3	19 -	35 65	21 -	40 75	SOP8
CJQ4606			Active	N/P-ch	Trench Trench	No No	30 -30	±20 ±20	6.9 -6	1~3 -1~-3	19 29	28 36	28 47	42 55	SOP8
CJL6602			Active	N/P-ch	Trench Trench	No No	30 -30	±12 ±12	3.4 -2.3	0.6~1.4 -0.6~-1.4	45 75	60 135	50 95	75 185	SOT-23-6L
CJX3439K			Active	N/P-ch	Trench Trench	Yes Yes	20 -20	±12 ±12	0.75 -0.66	0.35~1.1 -0.35~-1.1	- -	- -	- 270	380 520	SOT-563
CJCD2007			Active	Dual-N	Trench	Yes	20	±12	8	0.4~1	-	-	12.5	15	DFNWB2x3-6L
CJCD2005			Active	Dual-N	Trench	Yes	20	±12	8	0.4~1	-	-	9	12	DFNWB2x3-6L
CJCD2004			Active	Dual-N	Trench	Yes	20	±12	10	0.4~1	-	-	7.3	9	DFNWB2x3-6L
CJCD2003			Active	Dual-N	Trench	Yes	18	±12	10	0.4~1	-	-	6.2	7.2	DFNWB2x3-6L

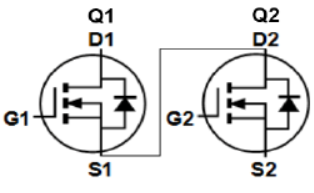

CJBM3020			Active	Dual-N	Trench	No	30	±20	20	1~3	8.5	14	11.5	18	DFNWB3x3-8L

«
