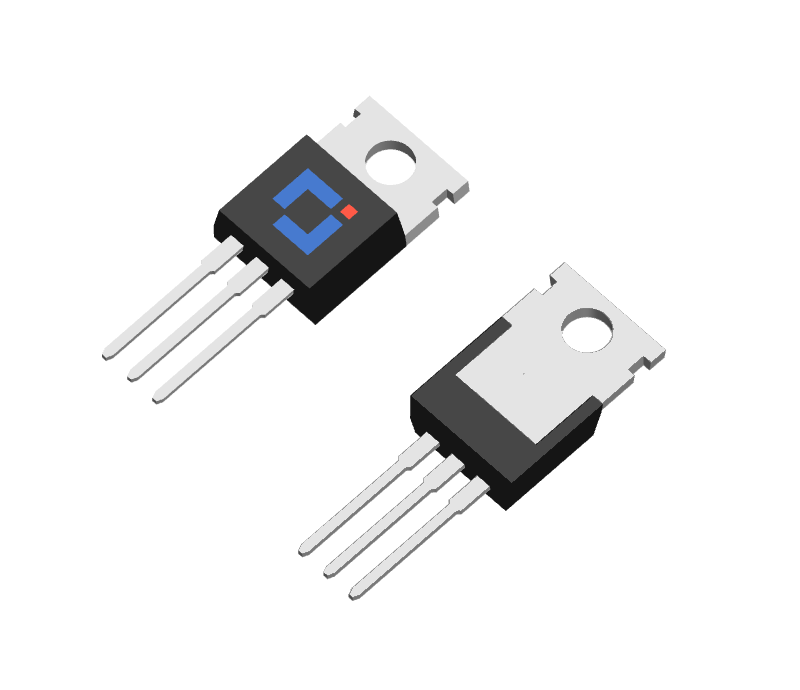

Pch -60V -50A, TO-220-3L-C, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJP50P06S | Active | No | -60 | ±20 | -50 | -1~-3 | 25 | 30 | - | - | TO-220-3L-C |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJP50P06S | TO-220-3L-C | - | P50P06S | Tube,50/tube | NA |
