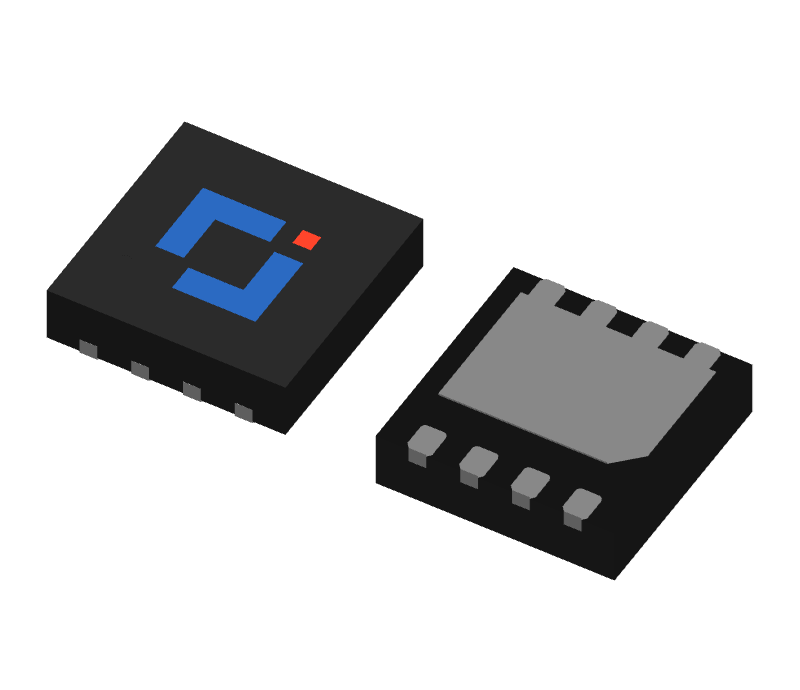

Pch -30V -35A, DFNWB3×3-8L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAE35P03 | Active | No | -30 | ±20 | -35 | -1~-2.5 | 10 | 15 | 15 | 25 | DFNWB3x3-8L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJAE35P03 | DFNWB3x3-8L | - | 35P03 | Tape&Reel:5Kpcs/Reel | MSL3 |
