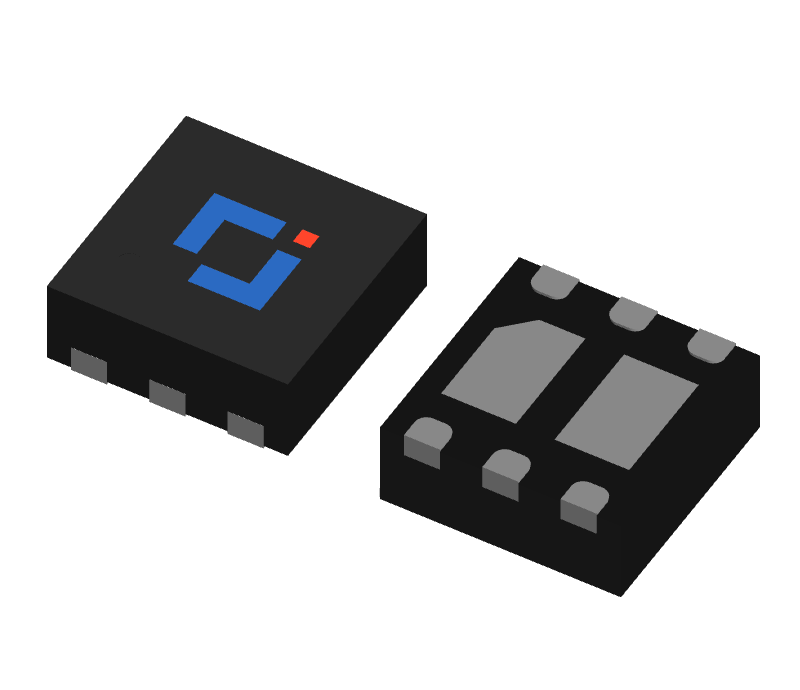

Dual Nch -20V -2.3A, DFNWB2×2-6L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJMPD11 | Active | No | -20 | ±8 | -2.3 | -0.4~-1 | - | - | 70 | 110 | DFNWB2x2-6L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJMPD11 | DFNWB2x2-6L | - | 11 | Tape&Reel:3Kpcs/Reel | MSL1 |
