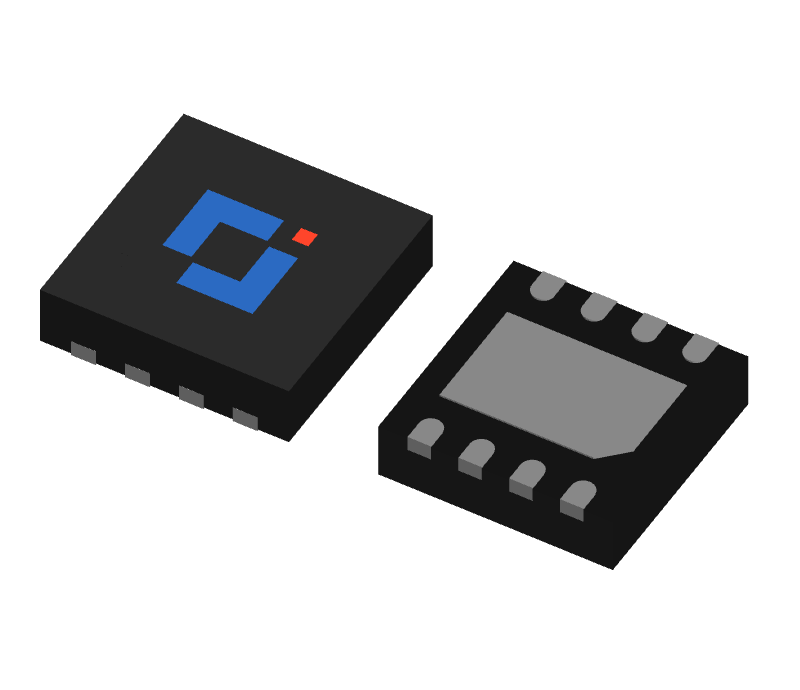

Dual Nch 18V 15A, DFNWB3×3-8L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAE2002 | Active | Yes | 18 | ±12 | 15 | 0.4~1 | - | - | 4.4 | 5.5 | DFNWB3x3-8L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJAE2002 | DFNWB3x3-8L | - | 2002 | Tape&Reel:5Kpcs/Reel | MSL3 |
