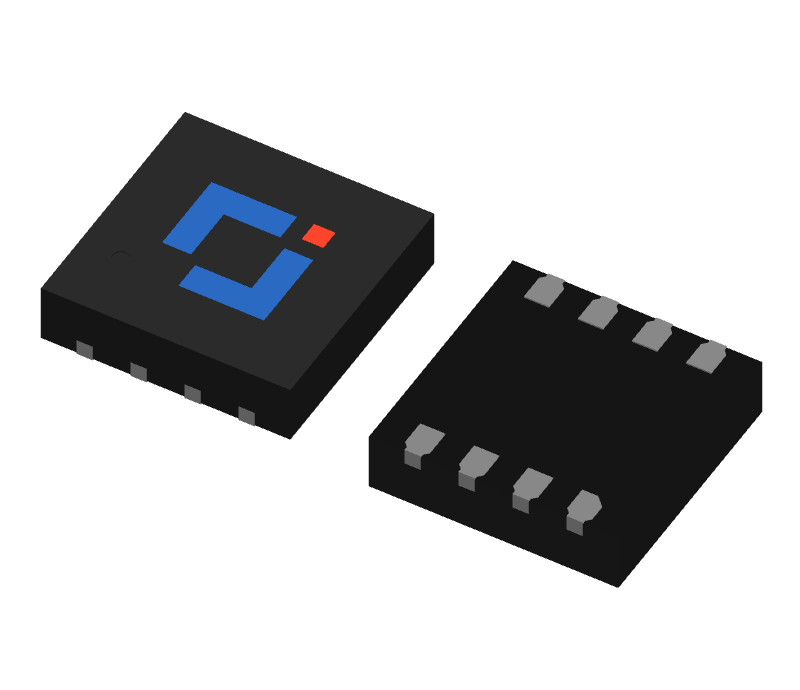

Dual Nch 20V 10A, DFNWB3×3-8L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJBE5005 | Active | Yes | 20 | ±12 | 10 | 0.4~1 | - | - | 9.3 | 11.5 | DFNWB3x3-8L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJBE5005 | DFNWB3x3-8L | - | BE5005 | Tape&Reel:5Kpcs/Reel | MSL1 |
