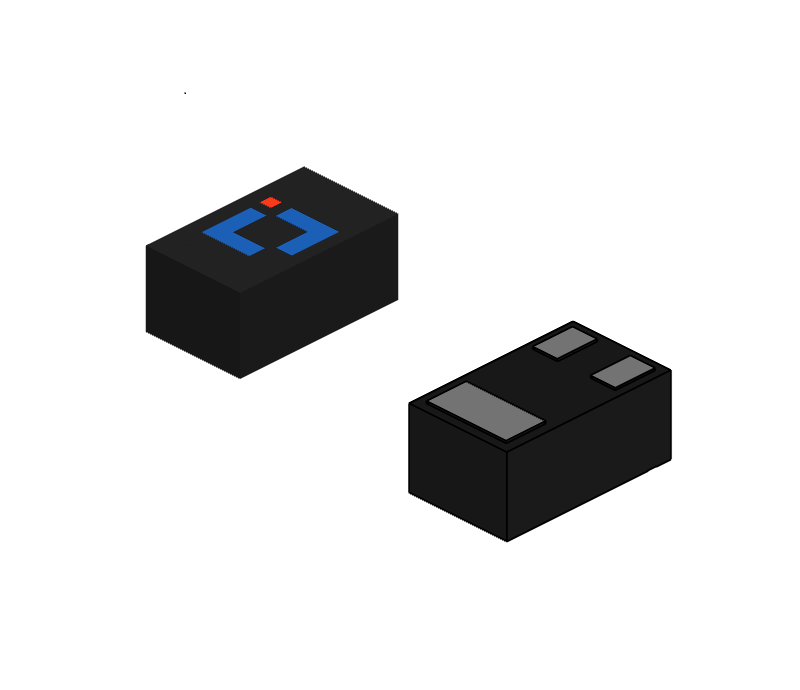

Nch 60V 0.34A, DFN1006-3L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJBA7002KL | Active | Yes | 60 | ±20 | 0.34 | 1~2.5 | - | 3500 | - | 4000 | DFN1006-3L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJBA7002KL | DFN1006-3L | - | KL | Tape&Reel:10Kpcs/Reel | MSL1 |
