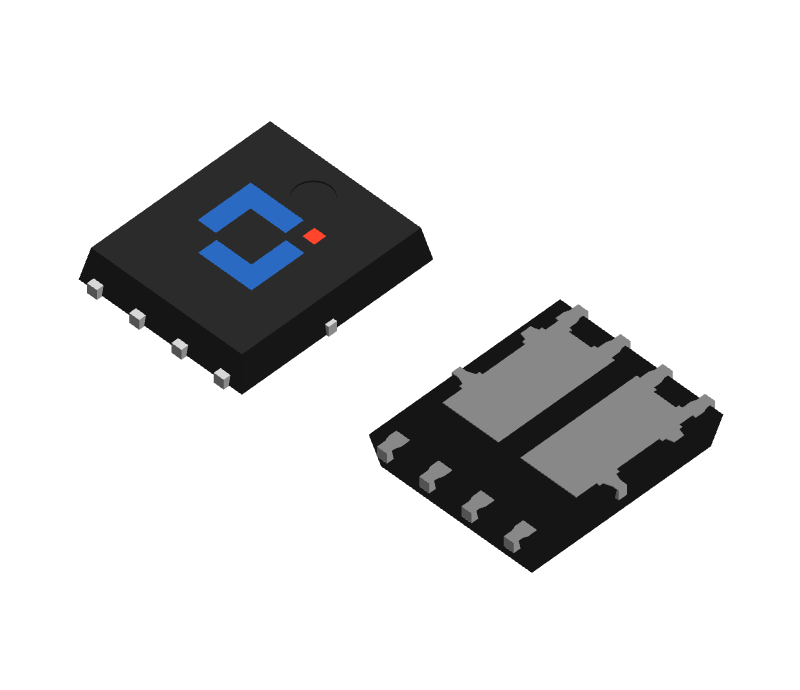

Nch+Pch, 30V 30A/-30V -30A, PDFNWB5×6-8L-A, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAC1214M03 | Active | No No |
30 -30 |
±20 ±20 |
30 -30 |
1~2.5 -1~-2.5 |
6.8 11 |
12 15 |
8.3 15 |
16 25 |
PDFNWB5x6-8L-A |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJAC1214M03 | PDFNWB5x6-8L-A | - | CJAC1214M03 | Tape&Reel:5Kpcs/Reel | MSL3 |
