Trench MOS

Part Number	Download	Circuit	Status	Type	Process	ESD Yes/No	VDS V	VGS V	ID A	VGS(TH) V	RDS(mΩ)@VGS 10V Typ	RDS(mΩ)@VGS 10V Max	RDS(mΩ)@VGS 4.5V Typ	RDS(mΩ)@VGS 4.5V Max	Package
Reset Reset All			Active OK Reset	Dual-N Dual-P N/P-ch Single-N Single-P OK Reset	Trench OK Reset	No Yes OK Reset	OK Reset	±10 ±12 ±16 ±20 ±25 ±30 ±6 ±7 ±8 OK Reset	OK Reset	-0.35~-1.1 -0.3~-1 -0.45~-1.2 -0.4~-0.9 -0.4~-1 -0.4~-1.0 -0.4~-1.3 -0.5~-0.9 -0.5~-1 -0.5~-1.2 -0.5~-1.5 -0.6~-1.4 -0.6~-1.5 -0.7 -0.7~-1.3 -0.9~-2 -1.0~-2.5 -1.0~-3.0 -1.1~-2.2 -1.2~-2.2 -1.5 -1.5~-2.5 -1.5~-3.5 -1~-2 -1~-2.5 -1~-3 -1～-2.5 -1～-3 -2~-4 0.35~1.1 0.35~1.4 0.35~2.5 0.3~1.1 0.45~1 0.45~1.1 0.45~1.2 0.4~1 0.4~1.0 0.4~1.1 0.4~1.2 0.4~1.4 0.5~0.9 0.5~1 0.5~1.1 0.5~1.2 0.5~1.3 0.5~1.5 0.5~2 0.5～2 0.65~1.2 0.65~1.20 0.6~1 0.6~1.2 0.6~1.4 0.6~1.5 0.7~1.4 0.7~1.5 0.7~3 0.8~1.5 0.8~3 0.9~1.5 1 1.0~2.5 1.2~2.5 1.2~2.8 1.2～3 1.3~2.3 1.3~2.5 1.5 1.5~2.5 1~2 1~2.5 1~2.8 1~3 1～2.2 1～2.5 1～3 2~4 OK Reset	OK Reset	OK Reset	OK Reset	OK Reset	CSPB1111-4 CSPB1313-4 CSPB1515-4 CSPB1717-4 CSPB1912-6 CSPB2213-6 CSPB2217-6 CSPC2019-10 CSPC2115-10 CSPC2623-10 CSPC2624-10 CSPC3015-10 CSPC3028-14 CSPC3030-14 CSPC3220-10 CSPC3421-10 DFN1006-3L DFN1006-3L-A DFNWB2x2-6L DFNWB2x3-6L DFNWB3x3-8L DFNWB5x2-6L PDFNWB3.3x3.3-8L PDFNWB3.3x3.3-8L-B PDFNWB5x6-8L PDFNWB5x6-8L-A SOP8 SOT-223 SOT-23 SOT-23-3L SOT-23-6L SOT-323 SOT-363 SOT-523 SOT-563 SOT-723 SOT-89-3L TO-220-3L-C TO-252-2L TO-92 TSSOP8 WBFBP-03E OK Reset

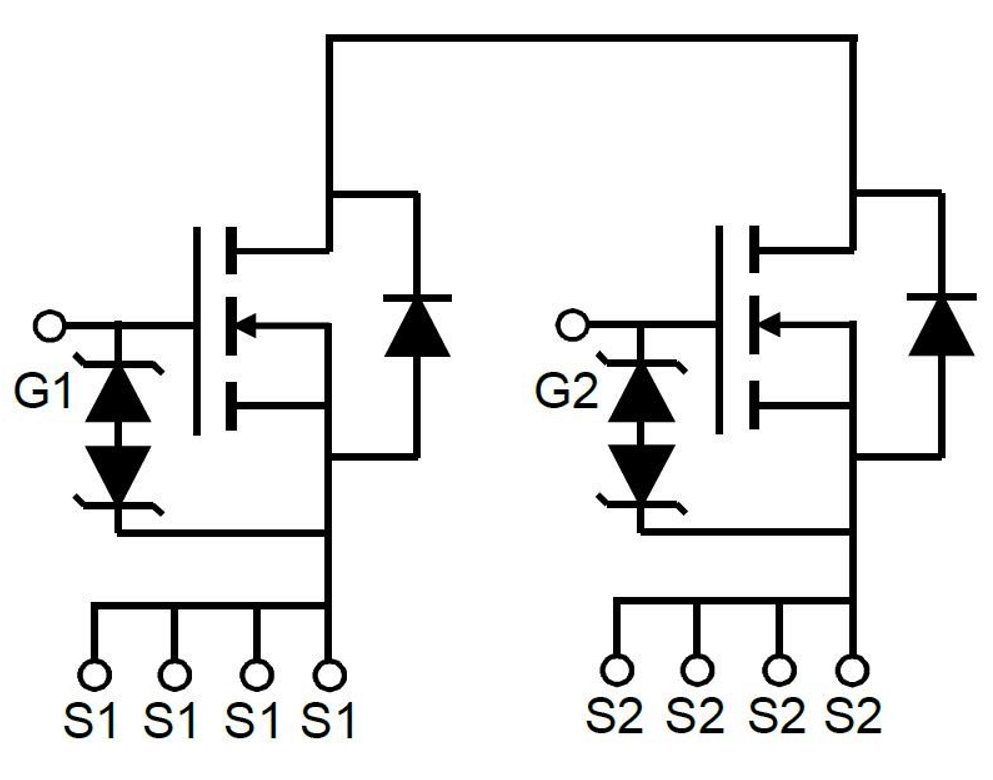

CJ8209SP			Active	Dual-N	Trench	Yes	12	±8	17	0.4~1.4	-	-	1.2	2.3	CSPC2624-10

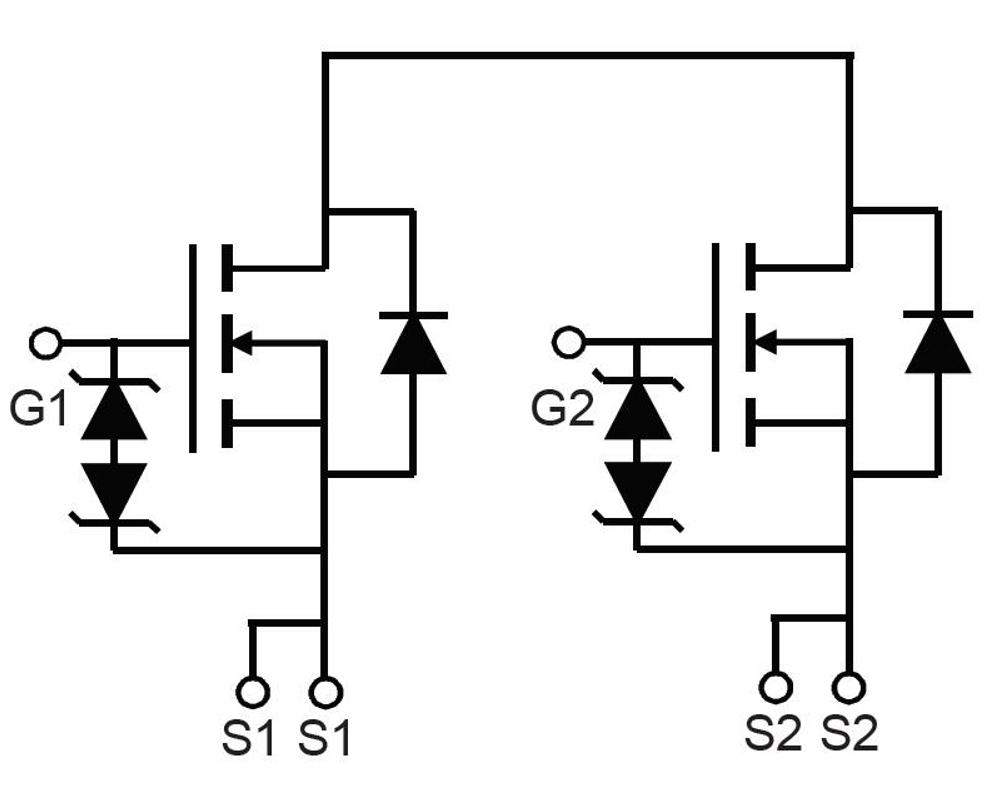

CJ6617SP			Active	Dual-N	Trench	Yes	20	±12	12	0.4~1.2	-	-	4.9	6.8	CSPB2217-6

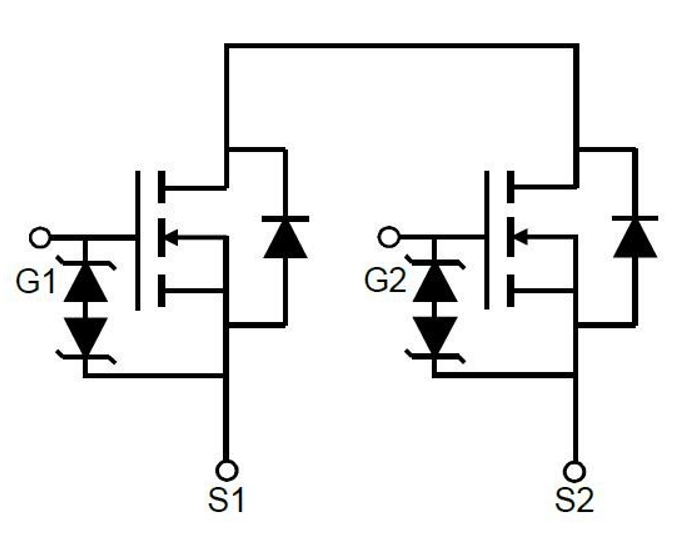

CJ4506SP			Active	Dual-N	Trench	Yes	20	±12	10	0.3~1.1	-	-	11.2	13.5	CSPB1717-4
CJ4502SP			Active	Dual-N	Trench	Yes	20	±12	3.5	0.5~1.3	-	-	22.6	31	CSPB1111-4
CJMP2011			Active	Single-P	Trench	No	-20	±12	-11	-0.45~-1.2	-	-	15	23.5	DFNWB2x2-6L
CJU30P10			Active	Single-P	Trench	No	-100	±20	-30	-1~-2.5	38	45	41	55	TO-252-2L
CJU40P03			Active	Single-P	Trench	No	-30	±20	-40	-1~-2.5	10	15	14	25	TO-252-2L
CJQ13P04			Active	Single-P	Trench	No	-40	±20	-13	-1~-2.5	11	15	14.5	22	SOP8
CJ502K			Active	Single-P	Trench	Yes	-50	±20	-0.18	-0.9~-2	4100	8000	-	-	SOT-23
CJQ16P03			Active	Single-P	Trench	No	-30	±20	-16	-1~-2.5	5.1	6.5	8.1	10	SOP8
CJU50P06			Active	Single-P	Trench	No	-60	±20	-50	-1～-3	25	30	-	-	TO-252-2L
CJU65P06			Active	Single-P	Trench	No	-60	±20	-65	-1~-3	13	18	-	-	TO-252-2L
CJAB55P03			Active	Single-P	Trench	No	-30	±20	-55	-1~-2.5	8	9.5	11.5	15	PDFNWB3.3x3.3-8L
CJU40P04A			Active	Single-P	Trench	No	-40	±20	-40	-1~-2.5	10.5	15	14	22	TO-252-2L
CJAB14P04			Active	Single-P	Trench	No	-40	±20	-14	-1~-2.5	68	80	98	120	PDFNWB3.3x3.3-8L
CJAE10P06			Active	Single-P	Trench	No	-60	±20	-10	-1~-3	26	35	-	-	DFNWB3x3-8L
CJAC70P06			Active	Single-P	Trench	No	-60	±20	-70	-1.5	7.6	8.6	9.2	12	PDFNWB5x6-8L
CJAC90P02			Active	Single-P	Trench	No	-20	±12	-90	-0.4~-1.0	1.9	2.3	2.2	2.6	PDFNWB5x6-8L
CJAE35P03			Active	Single-P	Trench	No	-30	±20	-35	-1~-2.5	10	15	15	25	DFNWB3x3-8L
CJAE55P03			Active	Single-P	Trench	No	-30	±20	-55	-1~-2.5	8	10	11.5	15	DFNWB3x3-8L

«
