Trench MOS

Part Number	Download	Circuit	Status	Type	Process	ESD Yes/No	VDS V	VGS V	ID A	VGS(TH) V	RDS(mΩ)@VGS 10V Typ	RDS(mΩ)@VGS 10V Max	RDS(mΩ)@VGS 4.5V Typ	RDS(mΩ)@VGS 4.5V Max	Package
Reset Reset All			Active OK Reset	Dual-N Dual-P N/P-ch Single-N Single-P OK Reset	Trench OK Reset	No Yes OK Reset	OK Reset	±10 ±12 ±16 ±20 ±25 ±30 ±6 ±7 ±8 OK Reset	OK Reset	-0.35~-1.1 -0.3~-1 -0.45~-1.2 -0.4~-0.9 -0.4~-1 -0.4~-1.0 -0.4~-1.3 -0.5~-0.9 -0.5~-1 -0.5~-1.2 -0.5~-1.5 -0.6~-1.4 -0.6~-1.5 -0.7 -0.7~-1.3 -0.9~-2 -1.0~-2.5 -1.0~-3.0 -1.1~-2.2 -1.2~-2.2 -1.5 -1.5~-2.5 -1.5~-3.5 -1~-2 -1~-2.5 -1~-3 -1～-2.5 -1～-3 -2~-4 0.35~1.1 0.35~1.4 0.35~2.5 0.3~1.1 0.45~1 0.45~1.1 0.45~1.2 0.4~1 0.4~1.0 0.4~1.1 0.4~1.2 0.4~1.4 0.5~0.9 0.5~1 0.5~1.1 0.5~1.2 0.5~1.3 0.5~1.5 0.5~2 0.5～2 0.65~1.2 0.65~1.20 0.6~1 0.6~1.2 0.6~1.4 0.6~1.5 0.7~1.4 0.7~1.5 0.7~3 0.8~1.5 0.8~3 0.9~1.5 1 1.0~2.5 1.2~2.5 1.2~2.8 1.2～3 1.3~2.3 1.3~2.5 1.5 1.5~2.5 1~2 1~2.5 1~2.8 1~3 1～2.2 1～2.5 1～3 2~4 OK Reset	OK Reset	OK Reset	OK Reset	OK Reset	CSPB1111-4 CSPB1313-4 CSPB1515-4 CSPB1717-4 CSPB1912-6 CSPB2213-6 CSPB2217-6 CSPC2019-10 CSPC2115-10 CSPC2623-10 CSPC2624-10 CSPC3015-10 CSPC3028-14 CSPC3030-14 CSPC3220-10 CSPC3421-10 DFN1006-3L DFN1006-3L-A DFNWB2x2-6L DFNWB2x3-6L DFNWB3x3-8L DFNWB5x2-6L PDFNWB3.3x3.3-8L PDFNWB3.3x3.3-8L-B PDFNWB5x6-8L PDFNWB5x6-8L-A SOP8 SOT-223 SOT-23 SOT-23-3L SOT-23-6L SOT-323 SOT-363 SOT-523 SOT-563 SOT-723 SOT-89-3L TO-220-3L-C TO-252-2L TO-92 TSSOP8 WBFBP-03E OK Reset

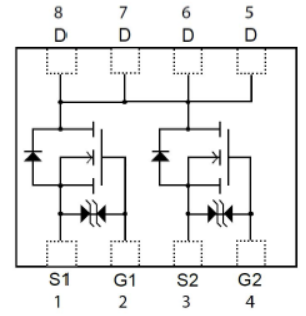

CJBE5005			Active	Dual-N	Trench	Yes	20	±12	10	0.4~1	-	-	9.3	11.5	DFNWB3x3-8L
CJBD3020			Active	Dual-N	Trench	No	30	±20	20	1~3	9.5	15	14.5	20	PDFNWB3.3x3.3-8L-B

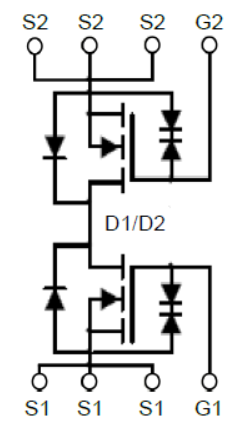

CJAE2002			Active	Dual-N	Trench	Yes	18	±12	15	0.4~1	-	-	4.4	5.5	DFNWB3x3-8L
CJ7252KDW			Active	N/P-ch	Trench Trench	Yes Yes	60 -50	±20 ±20	0.34 -0.18	1~2.5 -0.9~-2	900 4100	5000 8000	1100 5500	5300 10000	SOT-363
CJ3439KDW			Active	N/P-ch	Trench Trench	Yes Yes	20 -20	±12 ±12	0.75 -0.66	0.35~1.1 -0.35~-1.1	- -	- -	260 430	380 520	SOT-363
CJAC0410			Active	N/P-ch	Trench Trench	No No	100 -100	±20 ±20	4 -4	1~2.5 -1~-2.5	160 237	185 270	168 252	195 330	PDFNWB5x6-8L-A
CJX3139K			Active	Dual-P	Trench	Yes	-20	±12	-0.66	-0.35~-1.1	-	-	450	520	SOT-563
CJQ4953			Active	Dual-P	Trench	No	-30	±20	-5	-1.5	50	60	66	90	SOP8
CJMPD11			Active	Dual-P	Trench	No	-20	±8	-2.3	-0.4~-1	-	-	70	110	DFNWB2x2-6L
CJMPD08			Active	Dual-P	Trench	No	-12	±8	-3.6	-0.4~-1	-	-	35	60	DFNWB2x2-6L
CJL2623			Active	Dual-P	Trench	No	-30	±20	-3	-1~-3	75	130	115	180	SOT-23-6L
CJL2301			Active	Dual-P	Trench	No	-20	±8	-2.3	-0.4~-1	-	-	58	90	SOT-23-6L
CJL1206			Active	Dual-P	Trench	No	-12	±8	-6	-0.5~-0.9	-	-	30	45	SOT-23-6L
CJ3139KDW			Active	Dual-P	Trench	Yes	-20	±12	-0.66	-0.35~-1.1	-	-	430	520	SOT-363
CJ3134KDW			Active	Dual-N	Trench	Yes	20	±12	0.75	0.35~1.1	-	-	270	380	SOT-363
2N7002V			Active	Dual-N	Trench	No	60	±20	0.115	1~2.5	900	2500	1100	3000	SOT-563
2N7002KDW			Active	Dual-N	Trench	Yes	60	±20	0.34	1~2.5	900	2500	1100	3000	SOT-363
2N7002DW			Active	Dual-N	Trench	No	60	±20	0.115	1~2.5	1100	2500	1200	3000	SOT-363
CJAC20N06D			Active	Dual-N	Trench	No	60	±20	20	1~2.5	17	25	22	35	PDFNWB5x6-8L-A

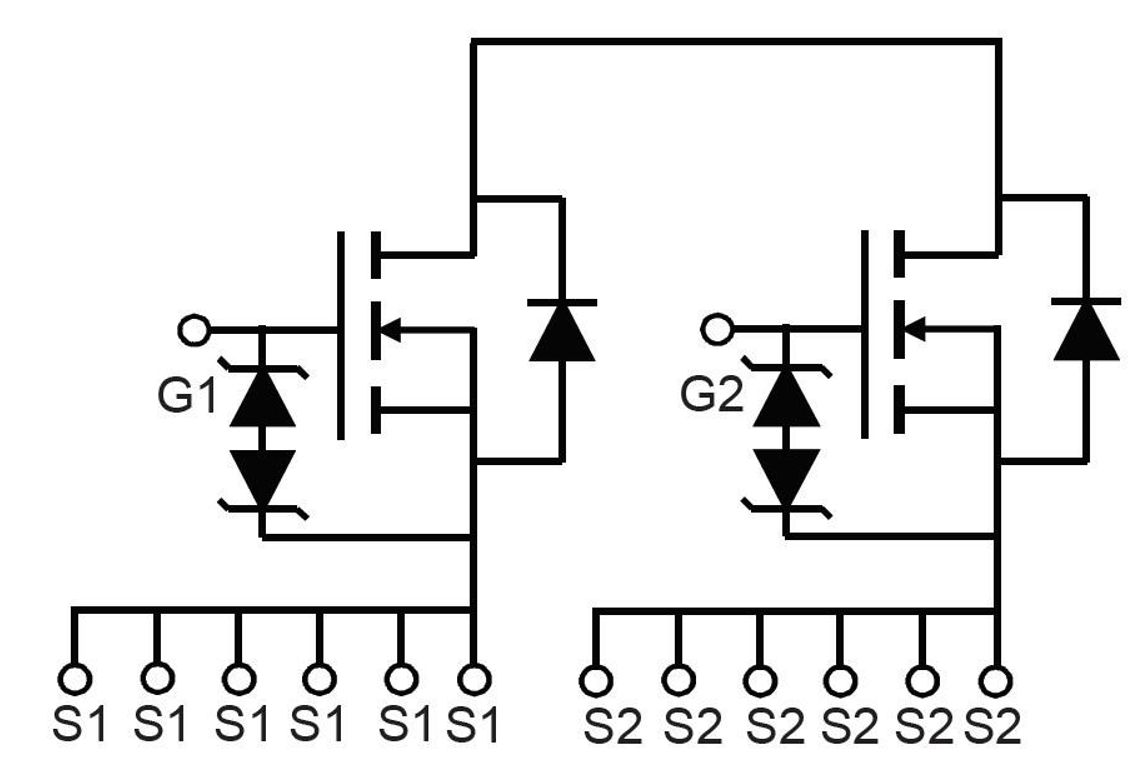

CJ12209SP			Active	Dual-N	Trench	Yes	12	±8	19.8	0.35~1.4	-	-	1.2	1.56	CSPC3028-14

«
